Plate Bending Machine in Boiler Works


(1) Wuhan boiler factory

http://cc.fxwjy.com

Introduction: Wuhan boiler factory is the boiler industry leading enterprises, Wuhan boiler factory has many years of experience in boiler design and manufacturing, the main products of coal-fired boiler, fuel boiler, gas boiler, multi-function atmospheric pressure hot water boiler, organic heat carrier (conductive oil) boiler, boiler, steam boiler, electric boiler, vacuum boiler, hot water boiler, circulating fluidized bed boiler, household boiler, environmental protection boiler, aluminum boiler, electric water boiler, etc. The company has first-class inspection and testing equipment, testing means are complete, advanced. There are 136 sets of important testing equipment, including 4 megv linear accelerator, 420 kVA X-ray flaw detector, γ -ray flaw detector, direct reading spectrometer, large rate gold phase microscope, etc. Can fully meet all kinds of inspection, testing requirements, to ensure the product quality. Leading products: coal-fired boiler, oil-fired boiler, gas-fired boiler, multi-functional atmospheric pressure hot water boiler, organic heat carrier boiler (thermal oil boiler), steam boiler, electric boiler, vacuum boiler, hot water boiler, circulating fluidized bed boiler, household boiler, environmental protection boiler, aluminum boiler, electric water boiler, etc.


Wuhan Boiler Factory


Order EZHONG products:

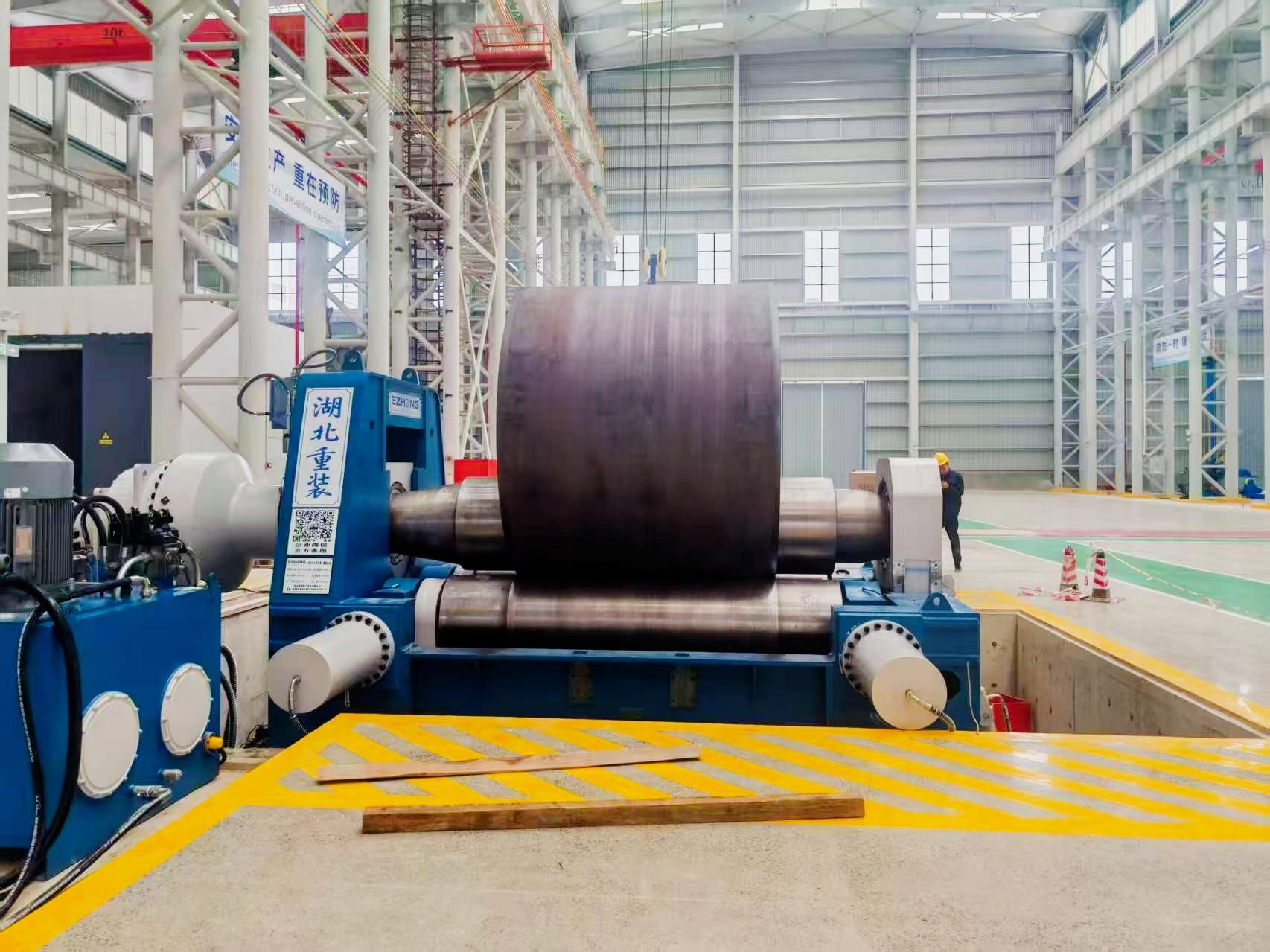

W11S-125/200×3800


W11S-125/200×3800

(W11S-125/200×3800)


Main parameter table

Serial number

Name

Unit

Data

1

Machine specification

Mm

W11S-125/200 × 3800

2

Maximum thickness of coiled plate

Mm

Cold 125 / hot 200

3

Maximum width of coiled plate

Mm

3800

4

Yield limit of steel plate

MPa

245

5

Minimum drum diameter under full load

Mm

φ 3500

6

Maximum thickness of pre-bending

Mm

110

7

Pre-bend the remaining straight edge

Mm

2mm 2.5 times plate thickness

8

Upper roll diameter

Mm

1050

9

Center distance of lower roll

Mm

1150

10

Lower roll diameter

Mm

515

11

Number of supporting rolls

Column

2

12

Bending speed

M/min

~ 3.5

13

Upper roll lift stroke

Mm

Through online 283 / offline 252

15

Main motor power

KW

63 × 2

17

Rated pressure of master cylinder

MPa

25

18

Overturning angle of overturning frame work

Degree

90 °±1 °(reference)

19

Maximum angle of overturning frame

Degree

93 °

20

Machine form factor

Mm

~ 9960 × 4740 × 5895



(2) Harbin Boiler Factory

http://www.hbc.com.cn/

Introduction: Harbin boiler factory enjoys a high reputation among domestic and foreign customers. With the design and manufacturing license for class A boiler and class AR1 pressure vessel, civil nuclear pressure equipment manufacturing qualification license, ASME "S", "U", "U2" design and manufacturing license certificate and regulatory steel seal, ASME nuclear power products N, NPT authorization certificate and NS certification certificate, and ISO9001, ISO14001, OHSAS18001 certification certificate. The company has won the first batch of national first-class enterprises, National May Day Labor Award, National Advanced Enterprise in Ideological and Political Work, National Enterprise Management Excellence Award (Golden Horse Award) and a series of national honors.


Harbin Boiler


Order EZHONG products:

W11S-195×3200


Order EZHONG Products: W11S-195×3200

(W11S-195×3200)


Main parameter table

NO.

Item

Unit

Data

1

specifications

mm

XWIIS-195/280X3200YI

2

Circulating temperature

C

-20C

850C-1050C

3

Plate yield limit

MPa

245

120

4

The maximum width of the coil

mm

3200

3200

5

The maximum thickness of the coi

mm

195

280

6

Maximum prebending thickness

mm

160

260

7

Full-load minimum workpiece diamet

mm

θ3600

8

The upper roller diameter

mm

θ1150

9

Lower roller diameter

mm

θ950

10

The middle spacing of the lower roller

mm

1200-1900

11

Volume plate speed

M/min

-32

12

Horizontal movement of single roll

mm

0-400

13

Horizontal moving oil motor for maximum pressure

mm

16

14

Horizontal movement speed

M/min

0.40

15

The upper roller is pressed at a speed of

M/min

Heavy load -0.065, no load -0.16

16

Up roll up speed

M/min

-0.3

17

Up and down the roll

mm

Above 300 and below 360 through the line

18

The upper roller drives power

K W

55x4

19

Lower roller drives torque

KW M

70x2

20

The maximum pressure of cast steel

WPa

25

21

Inhead head over Angle

°C

90+_1

22

Machine dimensions, length, width, and height

MM

11000x6210x6605
