EZW11SY-200/4500 Heavy Plate Rolling Machine in Wind Towers

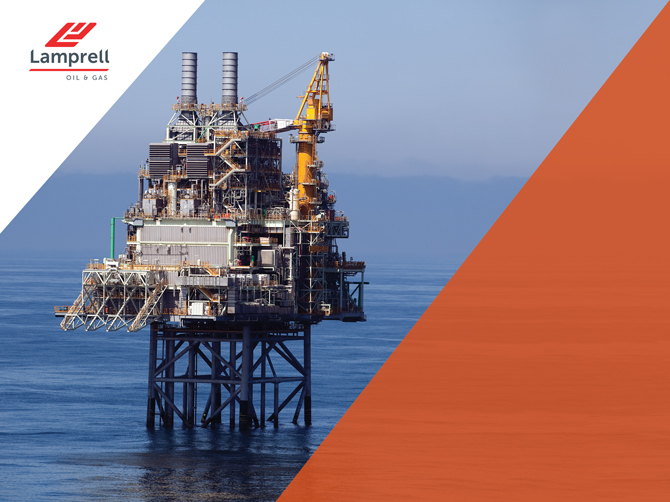

Lamprell is a leading provider of contracting services to the international energy sector. Driving strategy and growth through its Renewables, Oil & Gas and Digital business units, underpinned by almost half a century of expertise, Lamprell has worked hard to establish its reputation for delivering projects safely, on time and to budget. We employ more than 5,000 people, with our primary facilities located in Hamriyah, in the UAE. In addition, Lamprell has facilities in Saudi Arabia through a joint venture agreement.




Order EZHONG EZW11SY-200*4500 Heavy Plate Rolling Machine




Main Parameter Table of EZW11SY-200*4500 Heavy Plate Rolling Machine

NAME



UNIT



DATA

Specifications

mm

EZXW11S-200×4500

Diameter of upper roller

mm

1350





Diameter of lower roller



mm

1080

Upper&lower roller material

/

42CrMo



Upper roller pressing method



/



The oil cylinder drives the upper roller to move up and down along the vertical guide rail

Rotational drive mode of upper and lower rollers



/

3-Rolls fully hydraulic drive



Rotational drive mode of up roller: hydraulic motor + planetary reducer connected to up roller

Rotational drive mode of low roller: hydraulic motor + planetary reducer connected with low roller



Low roll horizontal/symmetrical



/



The cylinder drives the lower roller to move synchronously left and right along the horizontal guide rail





Straight edge coefficient



mm

over 2.5plate thickness





Rolling temperature



C

≈55°C



Equipped with oil cooler to meet the temperature requirements



Max width of rolling plate



mm

4200



Max width of rolling plate



mm

 4500



Max up roll pressure force



T

4300

Min drum diameter at full load

mm

Φ7000



Steel plate yield limit



Mpa

500



450



Max bending thickness



mm

150



155

Max pre-bending thickness

mm

120



125

Center distance between two low rollers

mm

1350-2150



Upper roller drive torque



KN.m

2600



Low roller drive torque



KN.m

80×2



Lifting stroke of upper roller



mm





Pass line above 380 below 300



Up roller pressing speed



mm/min

no-load~200  overload~65



Up roller rising speed



m/min

~0.2

Roller speed

m/min

≈3.5



Master cylinder max. pressure



Mpa

25





Inverter tipping angle



90



Up roll power



KW

245KW



Low roller drive power



KW

8.6KW*2

Hydraulic station&main cylinder&horizontal cylinder power



KW

120



Accessory device


Central Support (5m-10.5m  80T)

35T

Sides support(each 35T, deviation rectify)35m

Horizontal feeding table 35m

(alignment system)

Dimensions (LxWxH)

mm

~12500×8120×6950

Cooling system


Oil cooler forced cooling

Hydraulic system


Hydraulic balance



Lubrication system




Adopt automatic lubrication at startup and timed forced lubrication.



Operating system






Wireless remote control and mobile console have two operating systems, they are interlocked with each other safely, and only one system can be used at a time.
