Plate Rolling Machine For Marine Equipment


Shanghai Zhenhua Heavy Industries (Group) Co., Ltd.)

https://cn.zpmc.com

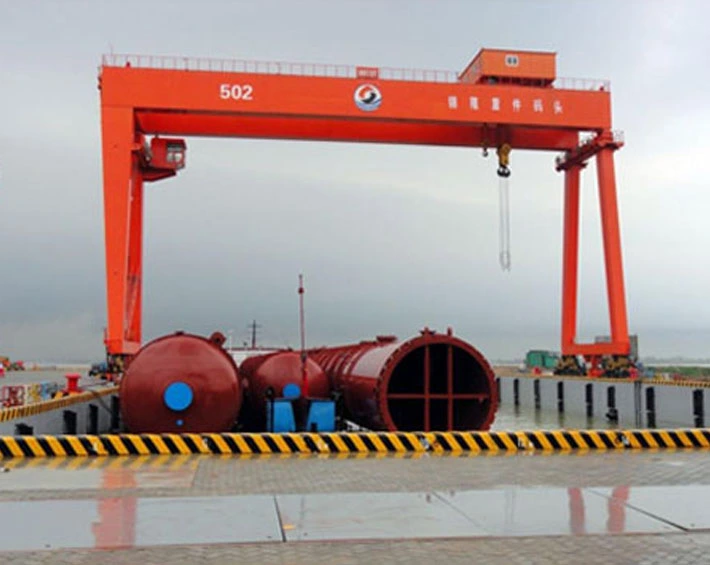

Brief introduction: Shanghai Zhenhua Heavy Industry (Group) Co., Ltd. (formerly known as Shanghai Zhenhua Port Machinery (Group) Co., Ltd., referred to as: ZPMC) is a well-known enterprise in the heavy equipment manufacturing industry. It is a state-owned A and B-share listed company. The controlling party is China Communications Construction Company, one of the world's top 500 companies. Zhenhua Port Machinery has changed its name to Zhenhua Heavy Industry, occupying the marine field. The company is headquartered in Shanghai, and has 8 production bases in Shanghai, Nantong, Jiangyin and other places, covering a total area of 10,000 mu, with a total coastline of 10 kilometers, especially the Changxing base at the mouth of the Yangtze River, which has a deep water coastline of 5 kilometers. With a load-bearing wharf of 3.7 kilometers, it is the largest heavy equipment manufacturing plant in the country and in the world. The company has 26 60,000-ton to 100,000-ton complete machine transport ships, which can transport large-scale products across seas and oceans to the world.


Shanghai Zhenhua Heavy Industries (Group)


Order EZHONG product application (1):

Marine plate rolling machine: EZW11S-1800T*12000mm


Rolling Machine: EZW11S-1800T*12000mm


Main parameter table

No. p / p

Name

Unit rev.

Meaning


3.1

Maximum width of the processed sheet

mm

12000

12000

3.2

The maximum length of the processed sheet

mm

6000

6000

3.3

The minimum length of the processed sheet

mm

1500

1500

3.5

Distance between posts

mm

12500

12500

3.6

The length of the working surface of the rolls

mm

12100

12100

3.7

Number of bending drive rolls from hydraulic motors

PCS.

3

3

3.8

Top roll diameter

mm

550

550

3.9

Bottom roll diameter

mm

500

500

3.10

Top Roll Torque

Nm

195000

195000

3.11

Accuracy of movement of the upper roll along the axis of rotation

mm

One 1

1

3.12

Torque of each bottom roll

Nm

195000

195000

3.13

Minimum

m/min

1

1

Maximum

m/min

4

4

3.14

Maximum distance between upper and lower rolls

mm

1000

1000

3.15

Maximum force of the top roll

kN

18000

18000

3.16

Maximum inclination of the upper roll for bending conical profiles

mm

500

500

3.17

Minimum

mm

600

600

Maximum

mm

1260

1260

3.18

Total installed power of electric motors

kW

360

360

3.19

Current frequency

Hz

50

50

Supply voltage

V

400

400

3.21

Overall Height of the Equipment

mm

11 200

11200

3.22

Height above floor level 0''

mm

7800

7800

3.23

foundation depth

mm

3400

3400

3.24

Machine length

mm

19 500

19500

3.25

Width (without conveyors)

mm

5 200

3900


Order EZHONG product application (2):

Roller leveler EZW43T-120*3000 7R


Roller leveler EZW43T-120*3000 7R

(roller leveler: EZW43T-120*3000 7R)


Main Parameter Table

No.

Name

Data

1

Flat plate (normal atmospheric temperature

MP a yield limit

485     Q345-A

maximum gage mm

90      120

mini mum gage mm

25

maximum width mm

3000

Choose the model

No parallel type + guide roll is adjustable

Choose the number of roller

7(Up 4 Down 3)

2

working roll

Roll number

5(Up 2 Down 3)

Roller distance / roller diameter mm

800/660

barrel length mm

3200

3

guied roller

Roll number

2(Up)

Roller distance / roller diameter mm

800/600

4

back-up roll

Roll number mm

790(Original 780)

On the following numbers

3 columns 6 rows (roller type)

5

moved cross beam

Press down stroke mm

+300-0

Pressing speed mm/min

20

6

The correction speed

2.4-6.0

7

Correction accuracy

1.0

8

Power of main motor

5.7KWX5+18.5KWX2

9

KNTotal corrective force KN

136000

10

Motor discharge roller road

2 sets, 10m long, PLC control, infinite speed regulation

11

Testimony platform

2 sets, each set bearing 40T

12

Relative elevation of the corrective stick roller surface

+-800

13

Host shape (length / width / ground height)

12/7.0/9.2
